Setter Class Reference

Virtual base class for classes that receive a value, maybe transform it and then do something with it. More...

#include <Setter.h>

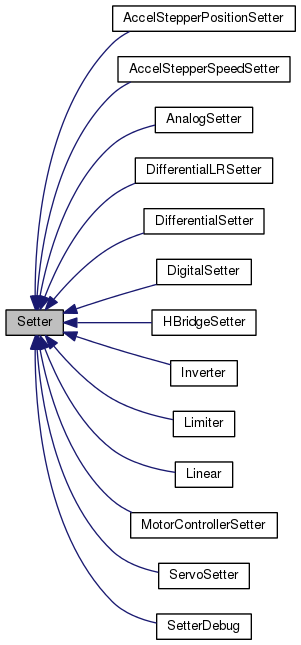

Inheritance diagram for Setter:

Collaboration diagram for Setter:

Public Member Functions
	Setter ()
	Constructor. More...
	Setter (Setter *target)
	Constructor with setting the target.
virtual void	input (int value)
	This is where incoming values are set. More...
virtual void	setTarget (Setter *target)
virtual void	failsafe ()
void	setFailsafeValue (int failsafeValue)
	Sets the failsafeValue.
int	failsafeValue ()

Protected Attributes
Setter *	_target
	This is the instance of Setter that will be given the transfotmed output value.
int	_failsafeValue

Detailed Description

Virtual base class for classes that receive a value, maybe transform it and then do something with it.

Author

Mike McCauley (mikem.nosp@m.@air.nosp@m.spayc.nosp@m.e.co.nosp@m.m)

Setters (ie different subclasses of Setter) are designed to be chained together. Each Setter in a chain transforms its input value in some way and then maybe passes it on to its output Setter. Setters can be designed to do almost any transformation with a number, including changing it, sending it to some device, using the value to set a physical output etc. Each setter can accept as input an int (ie a 16 bit signed number) although some Setters may be more constrained as to which value ranges make physical sense.

Constructor & Destructor Documentation

Setter()

Setter::Setter

(

)

Constructor.

Author

Mike McCauley (mikem.nosp@m.@air.nosp@m.spayc.nosp@m.e.co.nosp@m.m)

References _failsafeValue, and _target.

Member Function Documentation

failsafe()

void Setter::failsafe ( )

virtual

Called when the source of input data is lost, and the Setter is required to fail in a safe way. Subclasses can override. Default is to send to next Setter in the chain.

Reimplemented in DifferentialSetter, MotorControllerSetter, HBridgeSetter, DigitalSetter, SetterDebug, AnalogSetter, and ServoSetter.

References _target, and failsafe().

Referenced by failsafe(), HBridgeSetter::failsafe(), MotorControllerSetter::failsafe(), DifferentialSetter::failsafe(), and RCRx::failsafe().

failsafeValue()

int Setter::failsafeValue

(

)

Returns the most recently set failsafe value. Base class does not use this

References _failsafeValue.

Referenced by SetterDebug::failsafe(), and setFailsafeValue().

input()

void Setter::input ( int  value )

virtual

This is where incoming values are set.

Parameters

[in]

value

The input value

Reimplemented in DifferentialLRSetter, DifferentialSetter, MotorControllerSetter, HBridgeSetter, DigitalSetter, AnalogSetter, AccelStepperPositionSetter, AccelStepperSpeedSetter, ServoSetter, Limiter, Linear, SetterDebug, and Inverter.

References _target, and input().

Referenced by DifferentialSetter::doOutput(), Inverter::input(), Limiter::input(), Linear::input(), input(), HBridgeSetter::input(), MotorControllerSetter::input(), and RCRx::setAnalogOutput().

setTarget()

void Setter::setTarget ( Setter *  target )

virtual

Connects this Setter to a downstream Setter

Parameters

[in]

target

Pointer to a sublass of Setter, whose input() function will be called when a new value is available from this Setter.

References _target.

Referenced by HBridgeSetter::setTargets(), MotorControllerSetter::setTargets(), and DifferentialSetter::setTargets().

Member Data Documentation

_failsafeValue

int Setter::_failsafeValue

protected

This is the failsafe value, which some setters use to set the output when a failsafe call is made

Referenced by AnalogSetter::failsafe(), DigitalSetter::failsafe(), failsafeValue(), setFailsafeValue(), and Setter().

---

The documentation for this class was generated from the following files:

• Setter.h
• Setter.cpp
